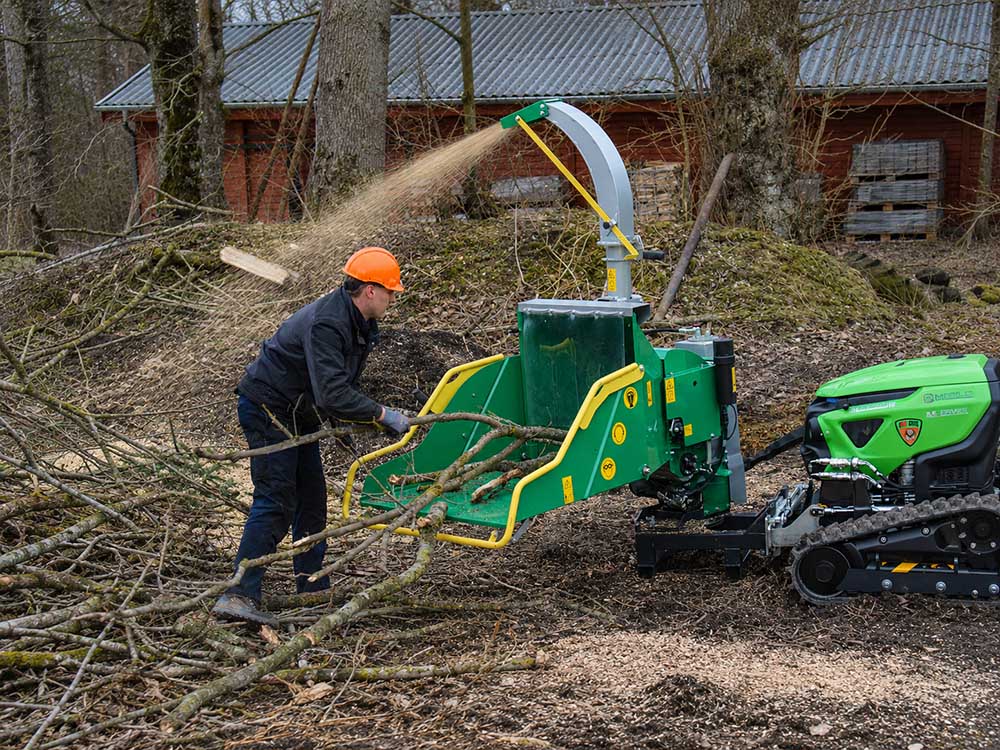

Galaxi Hydraulic HY100-120 Wood Chipper

TECHNICAL SPECIFICATIONS

• The GALAXI HYDRAULIC HY 100 - 120 wood chipper is an innovative machine, suited to processing both dry and green material without compromise; it also produces excellent wood chips for fuel.
• The wood chipper has a forced material feed guaranteed by a hydraulically controlled double roller with instant reverse; the hydraulic control and drive circuit for the feed rollers is independent on the wood chipper.
• This version is designed to be mounted, and comes standard-fitted for coupling plates on hydraulic tool carriers.
• The hydraulic transmission is fitted with a piston hydraulic motor with shock-protection device; the machine is supplied as standard with 1" quick-coupling fittings and drainage hoses.
• The wood chipper is equipped with a latest-generation NO-STRESS automatic load control system.
• The special control lever it is fitted with allows easy and quick control over the feed.
• The wood chipper comes standard with a special "VOLUMETRIC" hydraulic regulator for optimal control of the material feed speed.
• The Galaxi Hydraulic wood chipper is built with an oversized frame, ensuring long-lasting durability and reliability.

Chipping disc Ø 600 x 30 mm

Hydraulic flow rate Q = 42 - 80 l/min

Weight 515 kg

Max chipping Ø 140 mm

Discharge chute 295° rotating

Feed control lever Start / Stop / reverse

Loading dimensions (L×W×H)
with chute lowered 150x120x180 cm

Electronic No-Stress Automatic feed control
